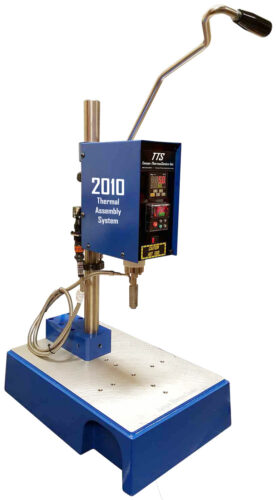

These lever-arm, manually operated systems are ideal for single-point or small, multi-point assembly operations. Each unit is exceptional for short-run prototype work, hot blade degating, off line repairs, date coding, branding and for testing new applications. The 2010T Manual Heat Staking Assembly System has a built-in digital timer. The operator can set and adjust the cycle time, ensuring that each part is assembled for the same amount of time. This improves part-to-part consistency and reliability. Ideal for laboratories and molding houses.


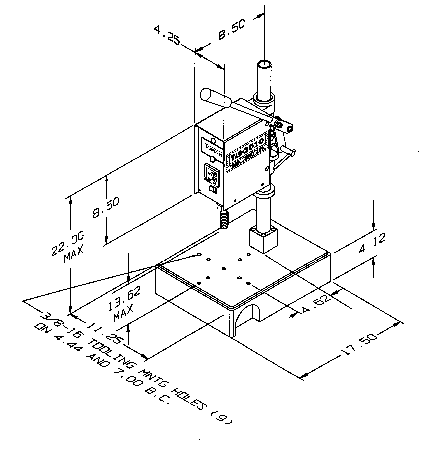

  • Blanchard ground cast aluminum machine base
    with 3/8-16 fixture mounting holes
  • Adjustable, locking depth stop for accurate tool adjustment
  • Microprocessor-based temperature controller with digital display of set point and process value readout
  • 80-999° F operating range +/-2 degree accuracy
  • Non-asbestos insulator
  • Easy-access on/off switch
  • Easy adjustable head height
  • Durable powder coated finish on all sheet metal surfaces


  • Power requirements: 110 VAC, 50/60 Hz
  • Current draw @ full rated output: 5 amps
  • Stroke length: 2.5″ (6.3 cm)
  • Maximum force: 120 lbs.
  • Weight: 34 lbs.

Custom Options (Quoted Upon Request)

  • Part holding nest and upper tooling for a complete turnkey assembly system
  • Extended column height
  • Post cooling system
  • 3″ x 3″ multi-point platen
  • Cartridge Heater

Additional Features for the 2010T

  • 0.1 second to 1 hour adjustable digital assembly timer
  • Magnetic switch that starts timer (not shown)

Item# TBY004
2010 Heat Staking Assembly System (1 Heat Zone)

Item# TBY007
2010T Heat Staking Assembly System (Timer & 1 Heat Zone)
