These One to Four Ton Heavy Duty Air Presses can be used on product assembly applications that, in the past, required much more costly, noisy, or leaky hydraulic presses. The heavy welded, C-Frame construction eliminates the press deflection you get on column-style presses. These presses are easily tooled and retooled using standard, inexpensive die sets. Punching, forming, pressing, and curling operations are easily accomplished.

The press features standard no-touch buttons which are superior to mechanical push buttons. Just the presence of your fingers on these photoelectric push buttons interrupts the infrared sensing beam to activate the switch. This eliminates hand, wrist and arm stress associated with repeated, mechanical switch operation which greatly reduces the risk of Carpal Tunnel Syndrome. Press activation is the same on all of our air presses, when the operator touches the two palm buttons, the press ram advances as long as their fingers remain in place. If they remove their fingers the ram immediately retracts. If you order your machine with the timer option, the operator can remove their hands from the palm buttons once the press ram is past the pinch point. The timer can be set from 0 to 5 seconds.

Features

  • 4” stroke standard (other strokes available)
  • Filter and regulator gauge
  • Dual, anti-tiedown, no-touch ergonomic actuation
  • 6″x6″ opening in back plate for part feed or blow-off
  • 10″x12″ tapped bolster plate for easy tool setup
  • Drilled hold-down feet for easy mounting to a machine stand

Specifications

  • Power requirements: 110-120 VAC, 50/60 Hz
  • Current draw @ full rated output: 1 amp
  • Pneumatic requirements: Clean, dry air @ 80-100 psig
  • Stroke length: 4” (10.16 cm)
  • Weight: 200-235lbs w/o tooling (depending on cylinder size)

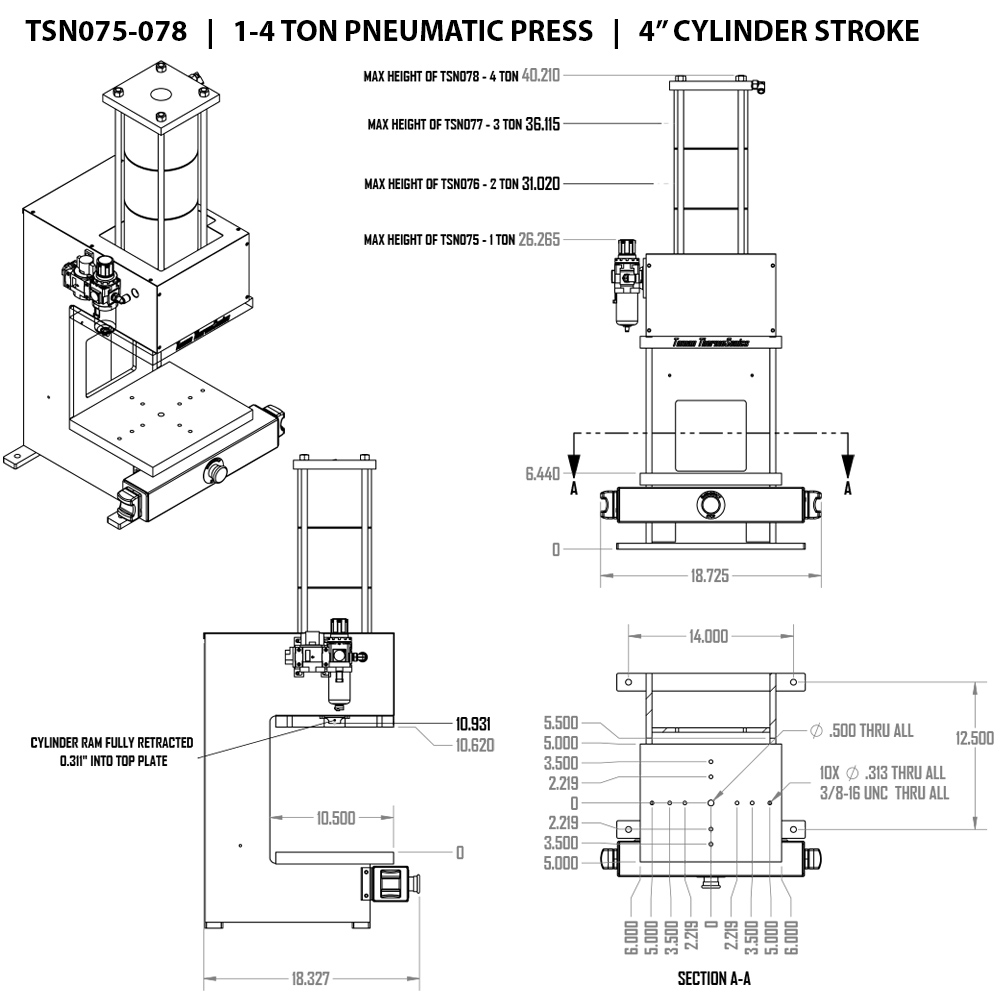

Item# TSN075
Pneumatic Press with 1 ton of force

Item# TSN075-T
Pneumatic Press with 1 ton of force and timer

Item# TSN076
Pneumatic Press with 2 tons of force

Item# TSN076-T
Pneumatic Press with 2 tons of force and timer

Item# TSN077
Pneumatic Press with 3 tons of force

Item# TSN077-T
Pneumatic Press with 3 tons of force and timer

Item# TSN078
Pneumatic Press with 4 tons of force

Item# TSN078-T
Pneumatic Press with 4 tons of force and timer
