The press holds several different brands of handheld ultrasonic welders in a fixed position. The press can also be used with our Thermal Conversion Kit. This rugged press turns your handheld welder into a versatile manual welding system. When used with your handheld welder, the combined system becomes ideal for prototypes, short run production and many repair applications. The ultrasonics is conveniently activated by a switch mounted on the head that actuates just prior to contacting the part. This press when coupled with a handheld welder is a very low-cost way to ultrasonically or thermally weld, insert or stake plastic parts.
Features
- Blanchard ground cast aluminum machine base with 3/8-16 fixture mounting holes
- Cast aluminum machine base
- Tubular steel column
- Locking column clamp for easy course head height adjustment
- 3/8 — 16 threaded holes for mounting tooling on four 7/16 inch and 7 inch and centers, same as most welders
- Steel stop collar with threaded screw for fine finished head height adjustment
- Ultrasonic start switch mounted to the head that activates just prior to contacting part
- Lightweight, just 34 pounds with hand piece mounted in the press

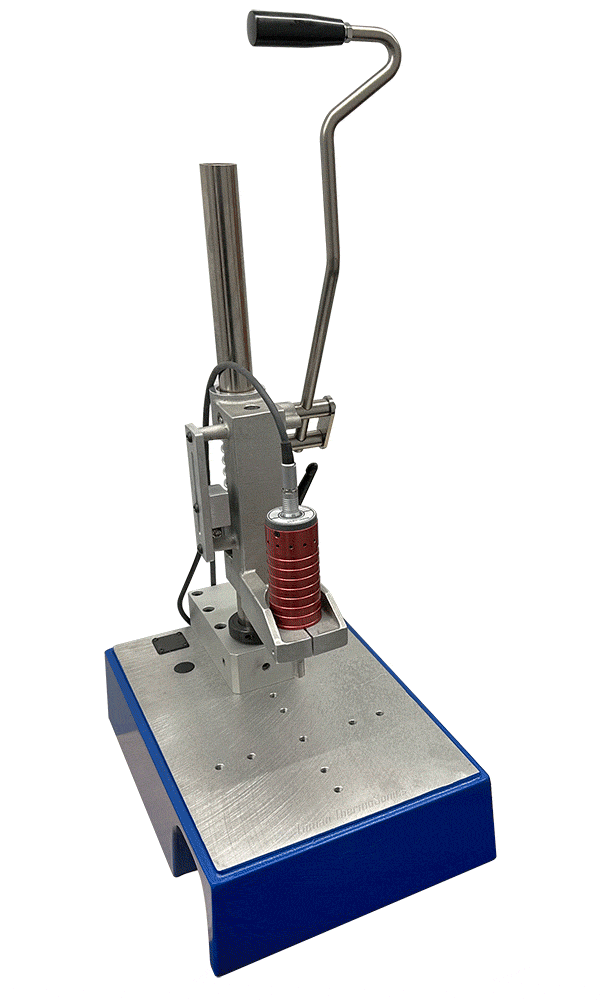

Item# TBY125
Handheld Welder Press
