These versatile and light duty air presses can be used in assembly operations requiring less than 500 pounds of down force. It can be tooled using low cost, miniature die sets. The lightweight design makes it easy to move from place to place.

All of our presses feature standard no-touch buttons which are superior to mechanical push buttons. Just the presence of your fingers on these photoelectric buttons interrupts the infrared sensing beam to activate the switch. This eliminates hand, wrist and arm stress associated with repeated, mechanical switch operation which greatly reduces the risk of Carpal Tunnel Syndrome.

Press activation is the same on all of our air presses, when the operator touches the two palm buttons, the press ram advances as long as their fingers remain in place. If they remove their fingers the ram immediately retracts. If you order your machine with the timer option, the operator can remove their hands from the palm buttons once the press ram is past the pinch point. The timer can be set from 0 to 5 seconds.

light duty industrial air press, light duty air press

Features

  • Blanchard ground cast aluminum machine base with 3/8-16 fixture mounting holes
  • 4” stroke standard (other strokes available)
  • Filter/Regulator with integrated gauge
  • Dual, anti-tiedown, no-touch ergonomic actuation
  • Large 8″x 8″ tapped bolster plate for easy tool setup
  • Cylinder to base plate clearance of 0 to 17.5″ in 1″ increments

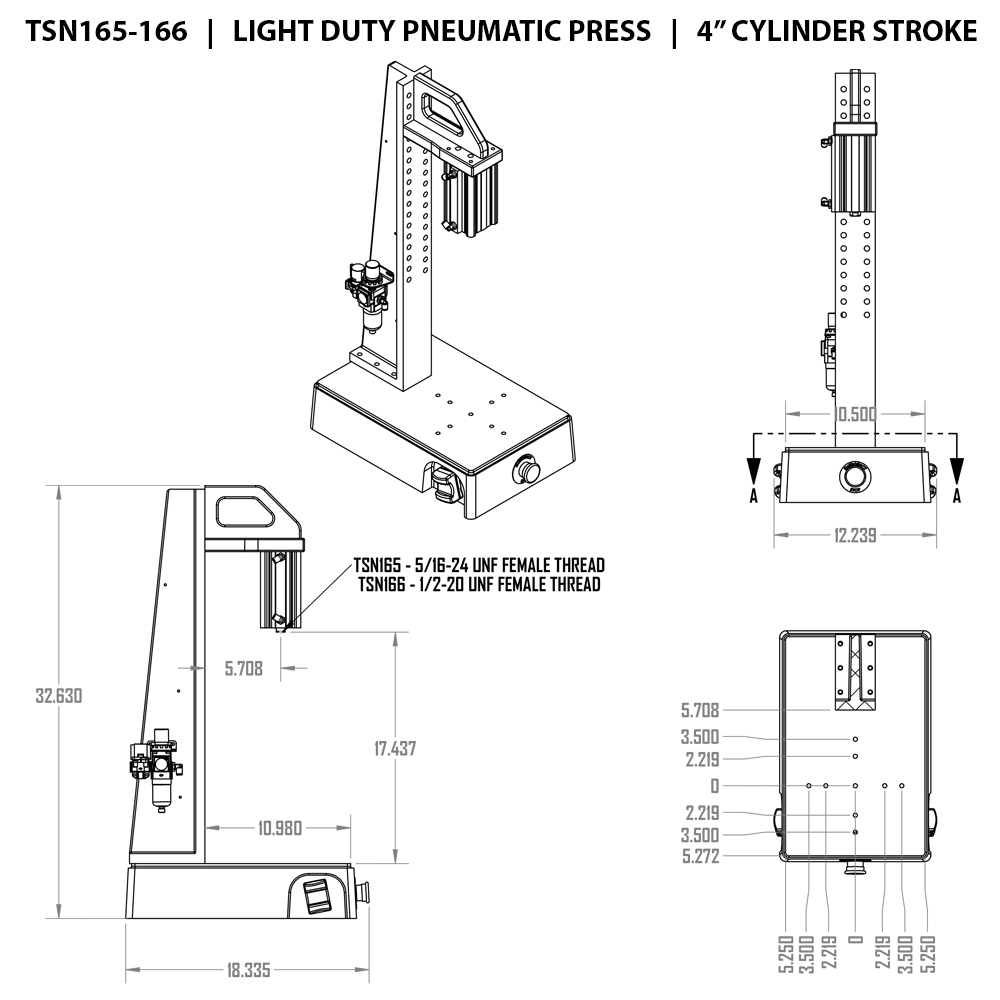

Item# TSN165
Pneumatic Press with 125 lbs. of force

Item# TSN166
Pneumatic Press with 480 lbs. of force

Item# TSN165-T
Pneumatic Press with 125 lbs. of force and timer

Item# TSN166-T
Pneumatic Press with 480 lbs. of force and timer

Specifications

TSN165- SPECIFICATIONS

  • Power requirements: 110-120 VAC, 50/60 Hz
  • Current draw @ full rated output: 1 amp
  • Pneumatic requirements: Clean, dry air @ 80-100 psig
  • Maximum force: 125lbs @ 100psig
  • Stroke length: 4” (10.16 cm)
  • Weight: 44lbs

TSN166- SPECIFICATIONS

  • Power requirements: 110-120 VAC, 50/60 Hz
  • Current draw @ full rated output: 1 amp
  • Pneumatic requirements: Clean, dry air @ 80-100 psig
  • Maximum force: 480lbs @ 100psig
  • Stroke length: 4” (10.16 cm)
  • Weight: 45lbs.
